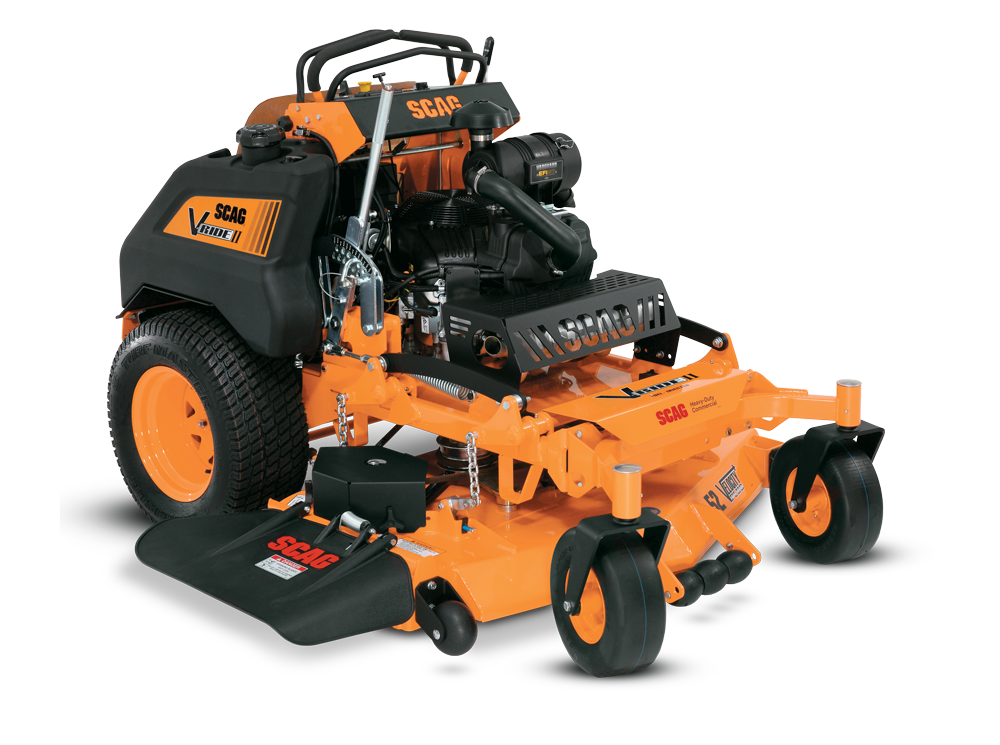

Scag V-Ride II 36" Commercial Stand-On Mower - 19hp Kawasaki FX Engine

$10,399.00
$10,399.00
$10,399.00

Vendor : Scag

Sku : 8B19

GET MORE INFO
×

SVRII-36A-19FX

SCAG V-Ride II

GO THE DISTANCE

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Actual product may differ from photos.

The envy of the neighborhood

48", 52" or 61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths. An Advantage Cutter Deck is featured on 32″ and 36″ widths.



Product Dimensions
32″ V-Ride II
36″ V-Ride II
48″ V-Ride II
52″ V-Ride II
61″ V-Ride II
Length 65.25″ 65.25″ 67.5″ 69.5″ 72.75″
Tracking Width 32″ 36″ 48″ 48″ 48″
Width (chute down) 43″ 47.75″ 61.25″ 65.25″ 73.5″
Width (chute in transport position) 33.75″ 37.25″ 49.75″ 53.75″ 62.75″
Height 47″ 47″ 47.25″ 47.25″ 47.25″
Weight 818 lb 832 lb 1,015 lb 1,000-1,022 lb 1,127-1,173 lb



General
Total Fuel Capacity 5 gallons (32″)

6.75 gallons (36″)

8 gallons (48″, 52″, and 61″)
Drive Tires 20″ x 6.5″-10″ (32″)

20″ x 8″-10″ (36″)

24″ x 9.5″-12″ (48″ and 52″)

24″ x 12″-12″ (61″)
Caster Tires 11″ x 4″-5″ (32″ and 36″)

13″ x 5″-6″ (48″ and 52″)

13″ x 6.5″-6″ (61″)
Seat Extra-large comfort cushion
Drive System
Drive System Type Dual Pump and Motor
Pumps Hydro-Gear 10 cc (32″ and 36″)

Hydro-Gear 12 cc (48″, 52″, and 61″)
Motors Parker 12 ci (32″ and 36″)

Parker 14 ci (48″, 52″ and 61″)
Forward Ground Speed 8.5 mph (32″ and 36″)

10.5 mph (48″, 52″ and 61″)
Reverse Ground Speed 5 mph
Parking Brake Hand lever
Deck
Cutting Width 36"
Type Advantage (32″ and 36″)
Cutting Height 1.5″ to 4.5″ in .25″ increments
Deck Lift Hand lever
Construction Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles.

32″ model features dual-plate.
Spindles Cast-iron housing with tapered roller bearings.
Blade Engagement Ogura GT2.5 (150 ft lb) – (32″, 36″, 48″ and 52″)

Ogura GT3.5 (250 ft lb) – (61″)

Adjustable air-gap for extended life.
