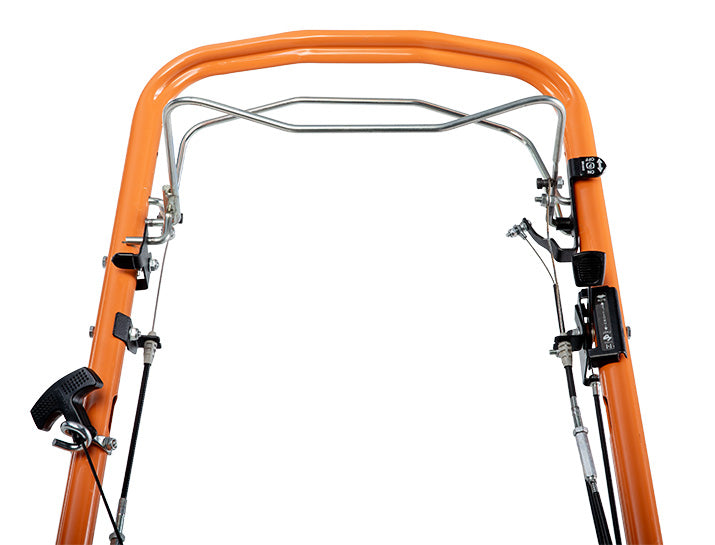

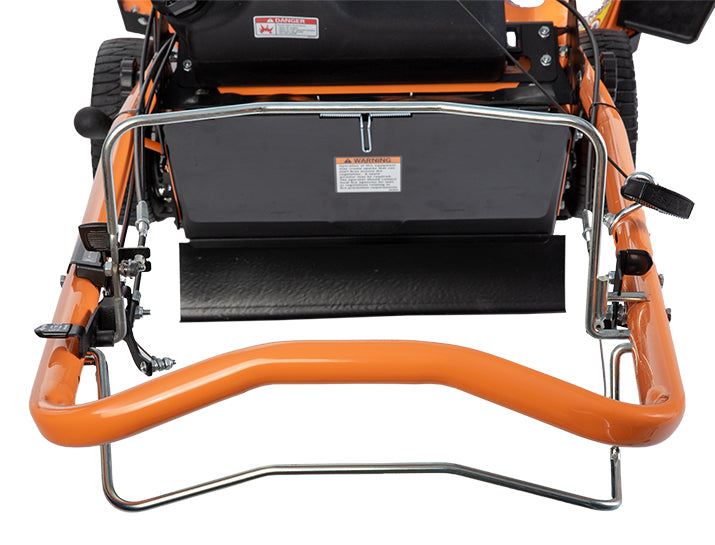

Oversized handles feature internally routed cables to protect from potential snags. Handle features tool-free adjustment up and down into 5 positions so it’s easy to find your sweet spot.

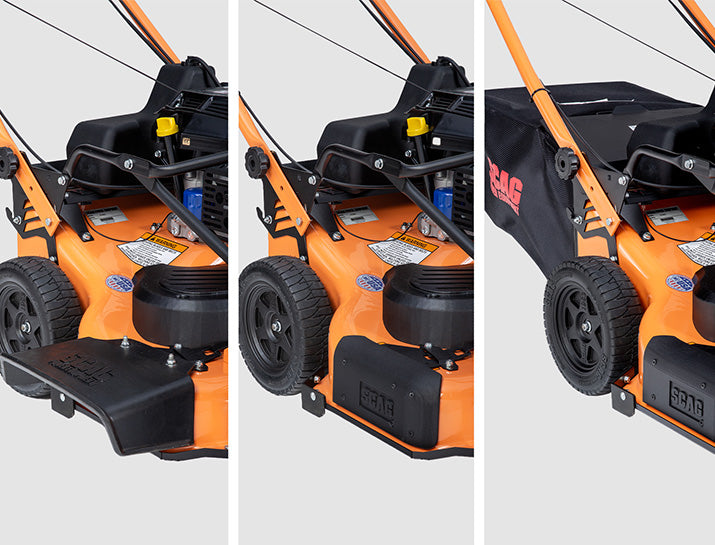

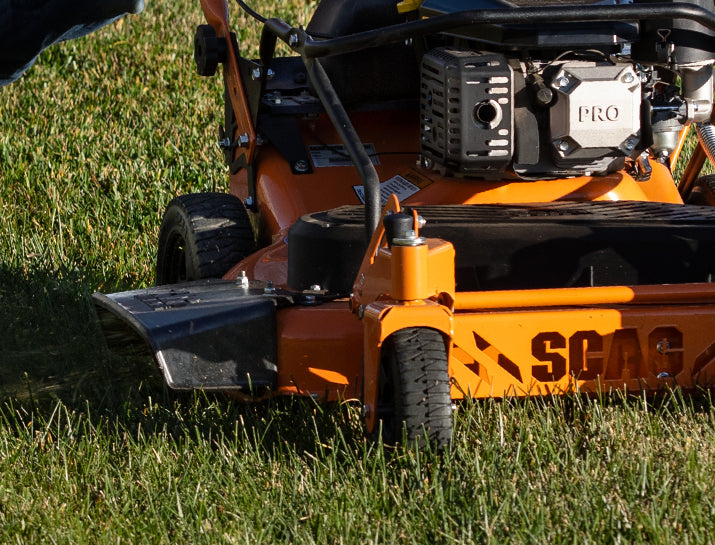

Handle cut grass the way you want, whether it’s side-discharging, mulching or bagging. All options come as standard equipment, allowing the operator to change on the fly as needed. Discharge: discharge chute – Mulch: deck plug and mulch plate – Bag: bagging baffle, mulch plate and fabric bag.
Engine Combo
Plenty of power

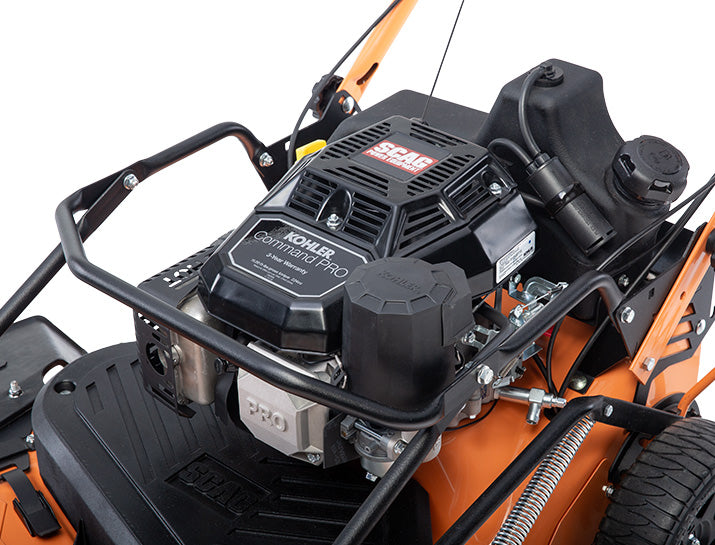

Dependable and efficient Kohler Command Pro CV224 engine provides exceptional performance. Proven maintenance-free GT MV 702 transmission delivers dependable drive power.
| Product Dimensions* |
30″ |
| Length – Minimum (handles in highest operating position) |
67.25″ |
| Length – Max (handles in lowest operating position) |
75″ |
| Tracking Width |
29.75″ |
| Width (with chute) |
36.75″ |
| Width (with block-off plate) |
32.5″ |
| Height – Lowest Operating |
35.5″ |
| Height – Max Operating |
48″ |
| Operating Weight – Bagging |
202 lbs. |
| General |
| Total Fuel Capacity |
1 gallon |
| Drive Tires |
10.5″ x 3″ |

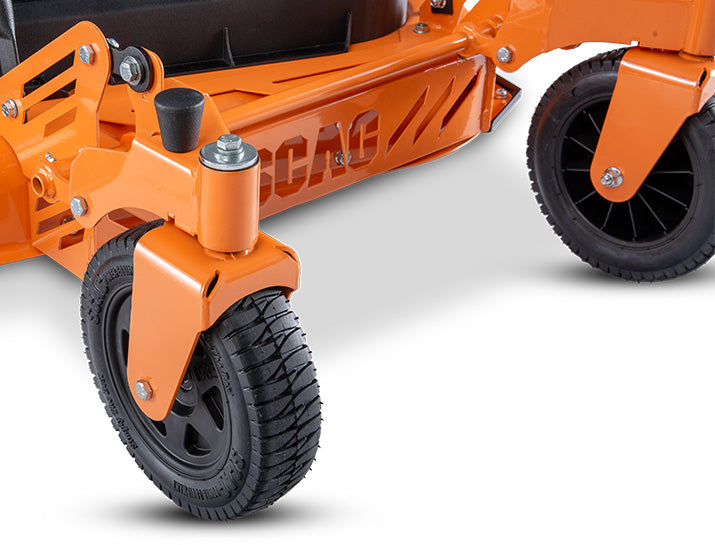

| Caster Tires |
9” x 2.25” |
| Drive System |
| Drive System Type |
GT MV 702 Transmission |
| Pumps |
N/A |
| Motors |
N/A |
| Forward Ground Speed |
Up to 3.5 mph |
| Reverse Ground Speed |
N/A |
| Parking Brake |
Hand lever |
| Deck |
| Cutting Widths |
30″ |
| Type |

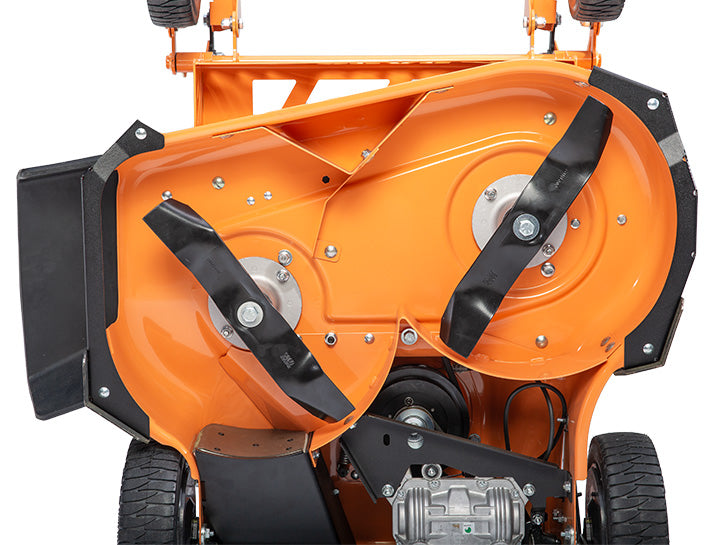

Extra-strong, stamped steel cutter deck. Offset blade, non-timed deck setup. |

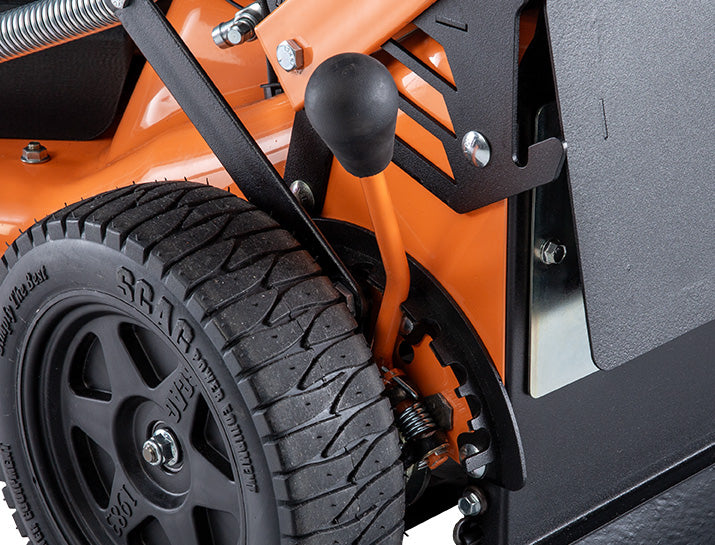

| Cutting Height |
1.5″ to 5″ in .5″ increments. |
| Lift |
Hand lever. Single-point adjustment. |
| Construction |
14-gauge, stamped steel deck shell with 14-gauge spindle reinforcement plate. Side reinforcement plates offer extra protection against impacts. |
| Spindles |
Aluminum housing with sealed ball bearings. |
| Blade Engagement |
Blade brake clutch allows operator to disengage cutter blades without shutting off the machine. |
| Specifications and prices subject to change without notice. Actual ground speeds may vary. Accessories subject to availability. |
