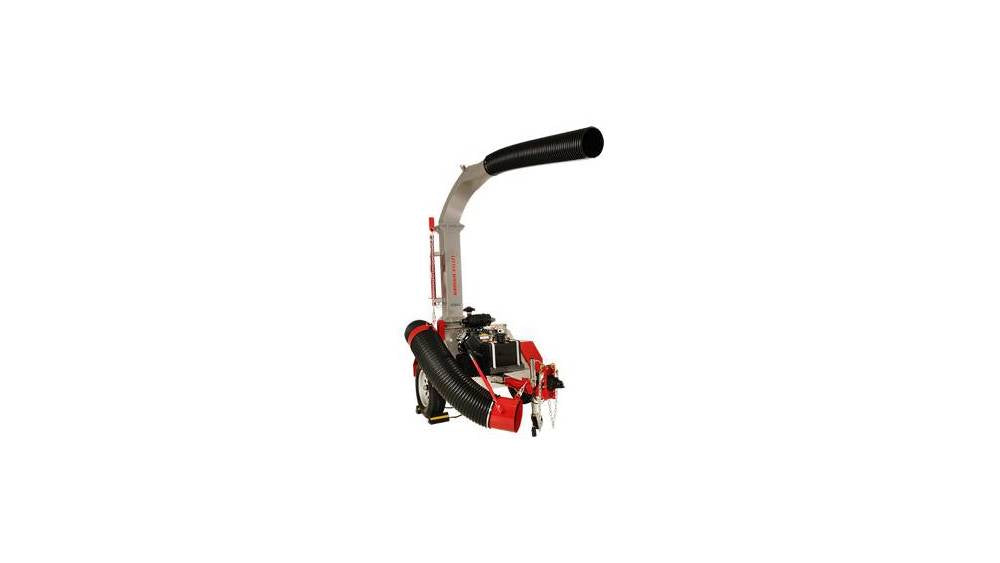

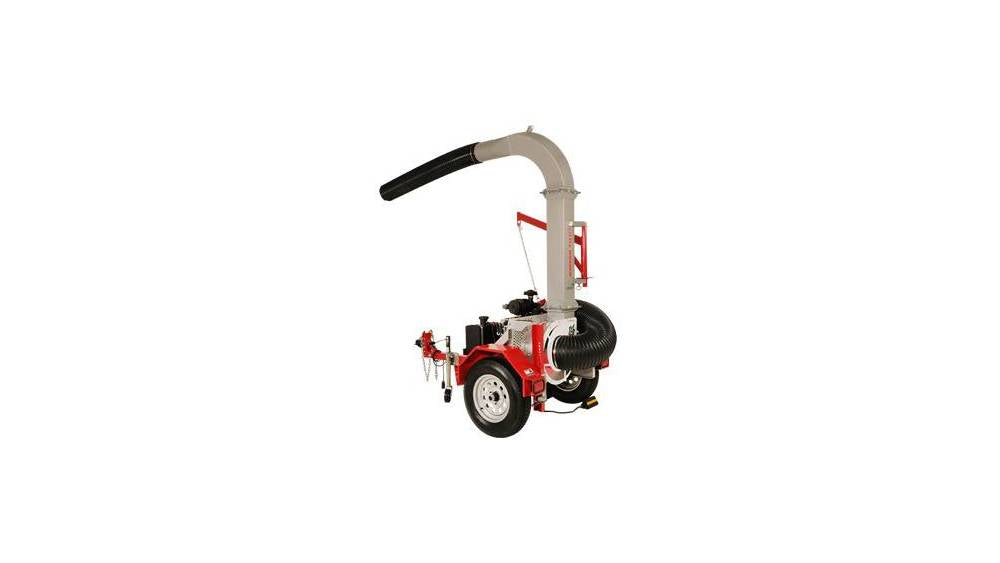

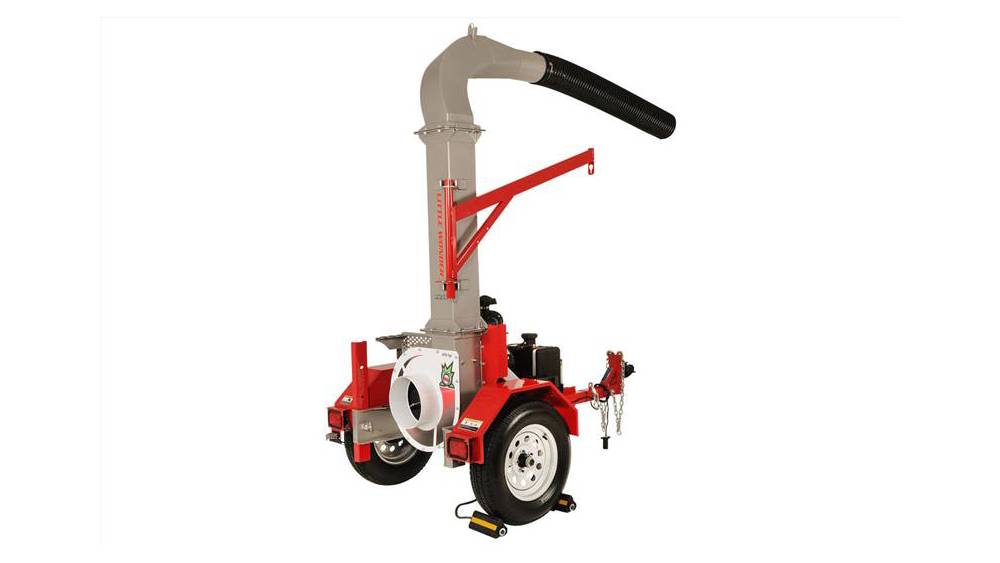

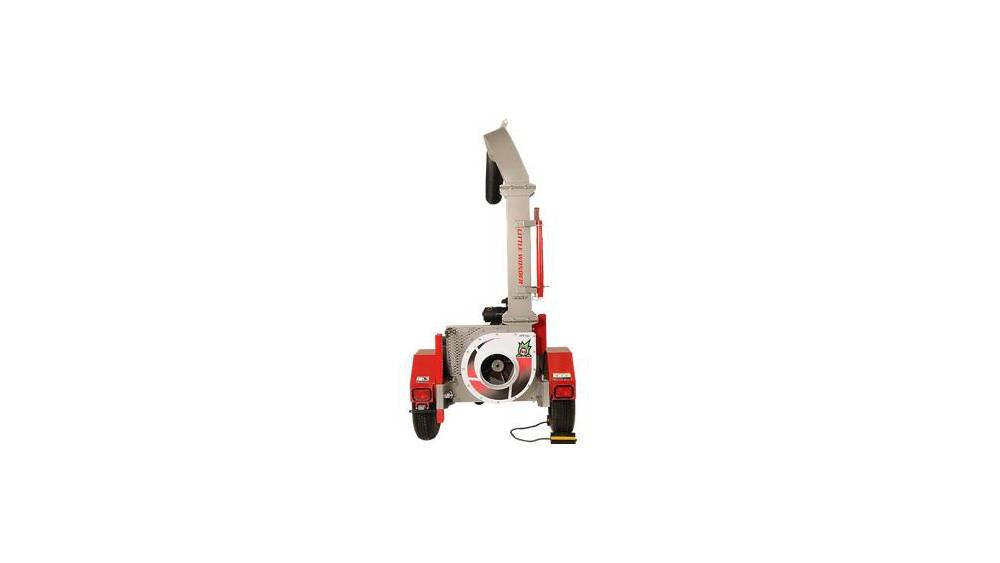

29HP Monster Truck Loader / Debris Loader 8293-04-01

Over 4,700 CFM of Monstrous Shredding Power

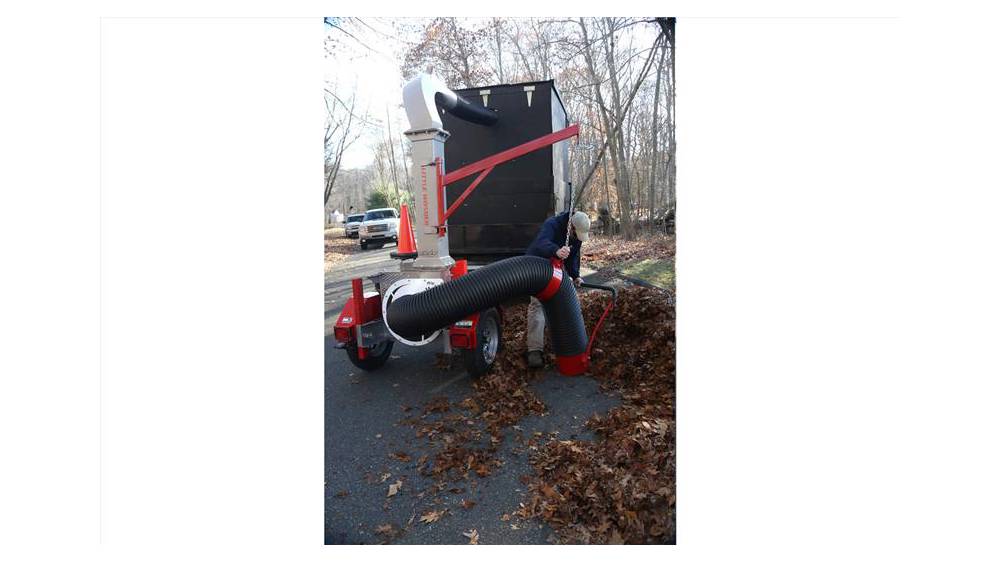

The power to attack mountains of leaves and debris and shred it down to size — up to 15:1. Comes mounted to a road-ready trailer with a flexible discharge hose to easily line up to your box for hitch-and-go convenience. Also available in a skid mount. Backed by a 2-year warranty.

FEATURES:

Stack Gaskets: Seal in airflow and lock in debris moisture.
Square Stack: For superior airflow; virtually eliminates clogging that round stacks allow.
Boom Locking Pin
1/4" Steel Housing Liners: For added durability.
3/8" Thick, 20" Diameter Steel Impeller: For reduction ratios up to 15:1.

Mounting Options:

• Tow-Behind Trailer (unit comes attached to trailer)

• Torflex® 2,000 lb. Axle

• Adjustable drawbar (height and length)

• 1,000 lb. swivel jack

• Pre-wired recessed stop/tail lights

• Registration ready

• Skid mount (Class III hitch required / 2" receiver)

Flexible 12" x 10' Urethane Intake Hose: Increases volume with comfortable grip handles.

Monstrous Power: 4,710 CFM – 29 HP Briggs & Stratton® Vanguard™

Flex-Tube Discharge Chute: 8" x 5'

Warranty: 2-Year Warranty

KEY FEATURES:

• 4,710 CFM

• 29 HP Briggs & Stratton® Vanguard™ Engine

• Four 3/8" wide, toothed steel blades for reduction ratios up to 15:1

• Square stack for superior airflow; virtually eliminates clogging that round stacks allow

• 20" diameter impeller

• 1/4" steel housing liners

• Flex-Tube discharge chute (8" x 5')

• Flexible 12" x 10' urethane intake hose increases volume with comfort grip handles

• Tow-behind trailer (unit comes attached to trailer)

• Torflex® 2,000 lb. axle

• Adjustable drawbar (height and length)

• 1,000 lb. swivel jack

• Pre-wired recessed stop/tail lights

• Registration ready

• Skid mount (Class III hitch required / 2" receiver)

• 2-Year Warranty

SPECIFICATIONS:

Description: 29 HP Briggs & Stratton Vanguard™ Skid Mount
HP: 29 HP
Engine: B&S Vanguard
Mount: Skid Mount
Hitch Class Requirements: Class III hitch required for 2" square receiver
Starter: Electric
Fuel System: 6-gallon
Fuel Type: Gas, EPA compliant, 49-state
Battery: 12V
Impeller: Four 3/8" steel shredding blades, 20" diameter, Taper-Lock hub
CFM: 4,712
Housing Liners: 1/4" steel
Intake Hose: 12" x 10'
Discharge: 8" x 5' Flex-Tube, PU .060
Axle: N/A
Tire/Wheel: N/A
Dry Weight: 727 lbs.
Height: 95 inches
Width: 37 inches
Depth: 46 inches
Warranty: 2 years
